Component Products

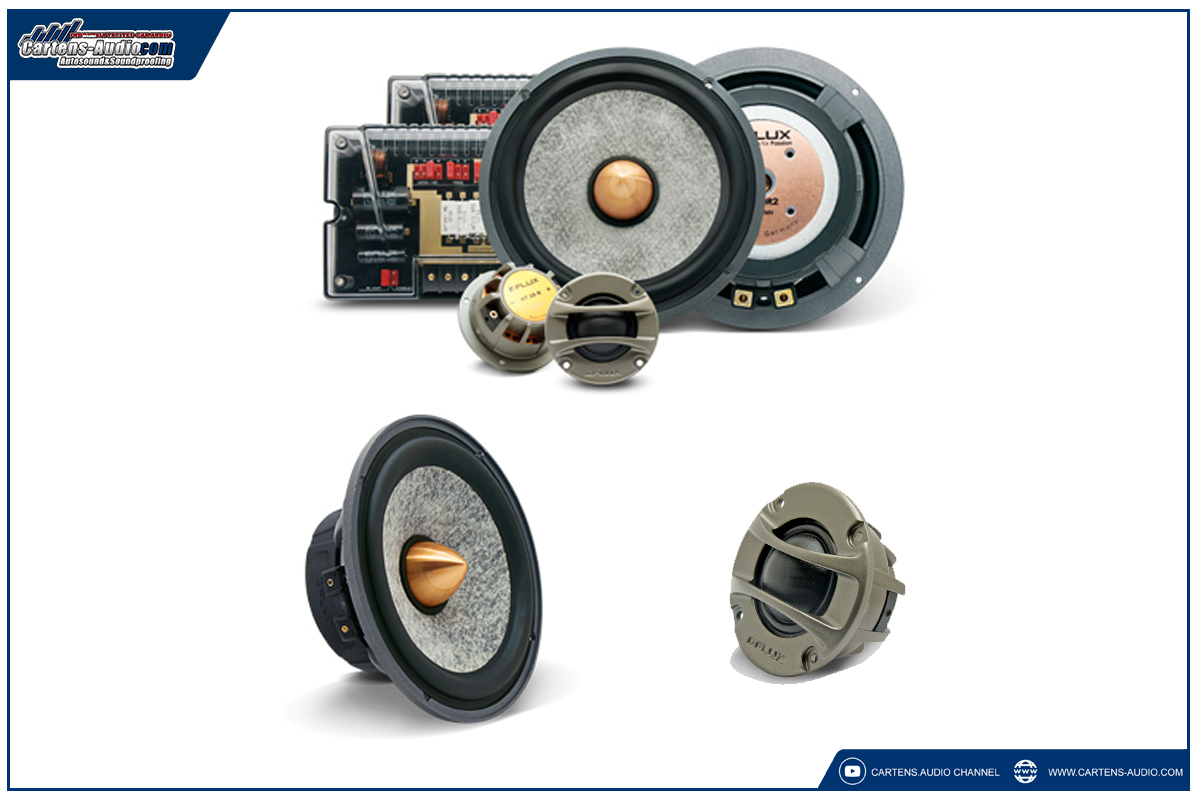

Midwoofer(T160-R2)
Using 4 layer (paper+glass+fiber+silk+ceramic) cone with 37mm v/c with 90mm magnet diameter, Aluminium die cast basket, vented basket and copper phase plug.

Tweeter (HT-28R)
• 28 mm v/c special hand coated silk dome.
• vented magnet with additional rear chamber.
• Highly optimized design with high grade proccessed alumunium housing for better performance.
• Top Mounting Depth : 27mm
• Cut Out Diameter : 51.5 mm

Passive Crossover (XR-270)
2 way passive crossover for RC 270.
Real 24 KT gold plated
Double sided PCB with 2 OZ copper thickness to maximize signal transfers.
Multiple setting Combination , to get the Best tonal accuracy and to facilitate the sound setting.
Using selected silver solder to maximize contacts.
Selectable input for single or dual amplifiers.

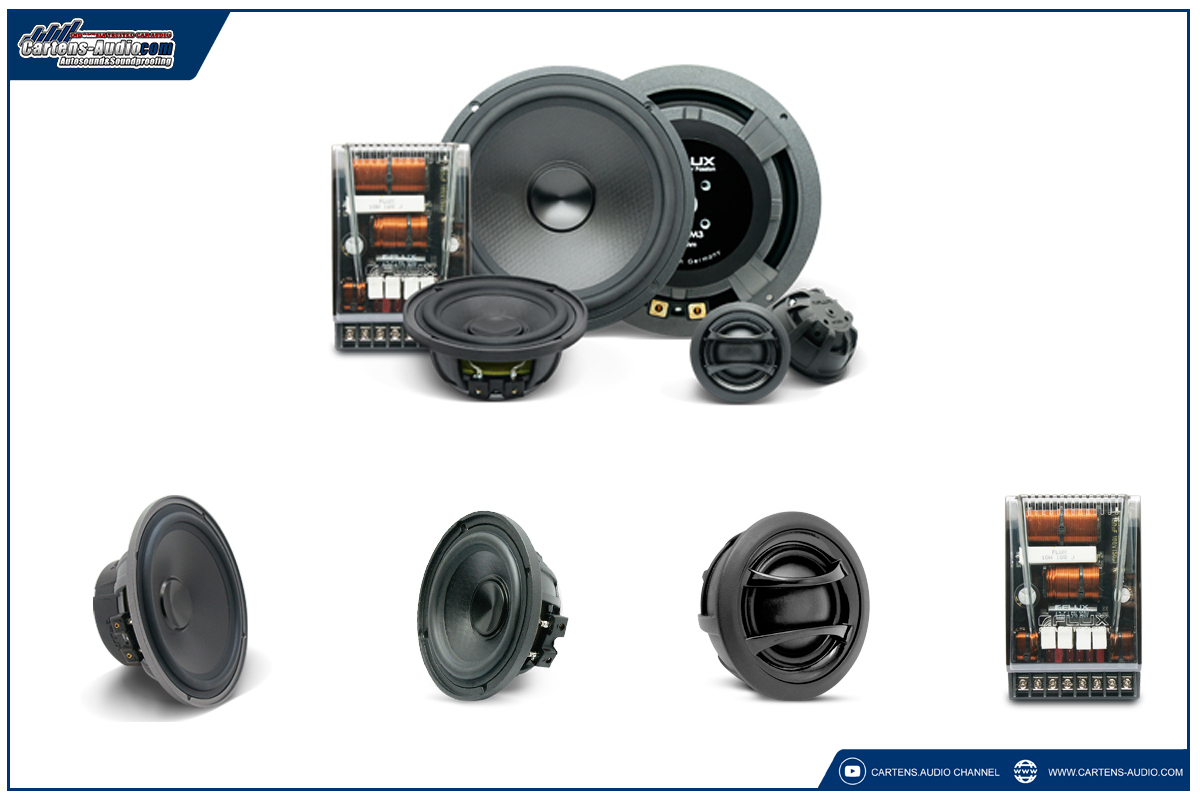

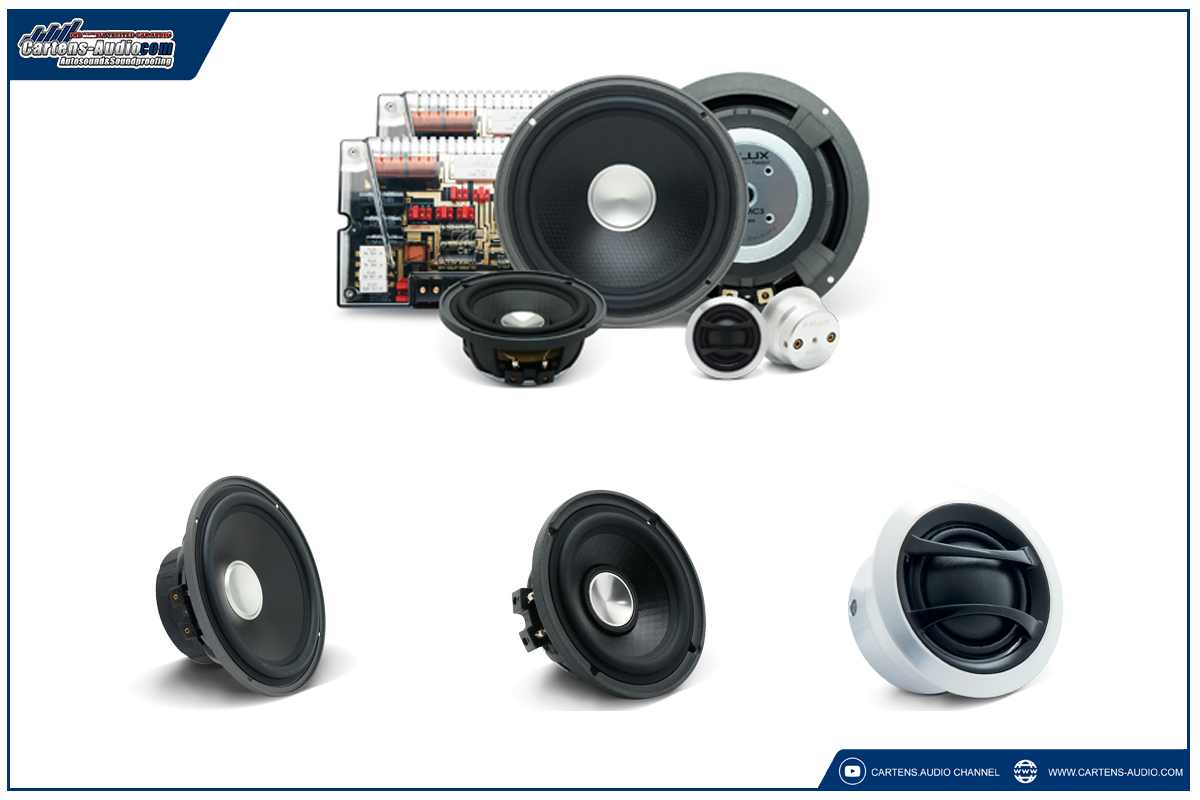

Midwoofer (T160MC3)
Triple sandwich (paper+glass+fiber+silk) cone
37mm v/c with 90mm magnet diameter
Auminium die cast basket, vented basket
Aluminum reverse dust cap

Midrange (M80MC3)
3" Midrange triple sandwich (paper+glass fiber+silk) cone.
25mm v/c with special hand coated silk dome
Duralium housing, screw connector
Vented magnet with additional rear chamber

Tweeter (HT25MC)
25mm v/c with Heavy Copper Cup Soft Dome Tweeter with hand made coated.
Vented Magnet with additional rear chamber .
Duralium Housing, screw connector.

Passive Crossover (XMC-361)
3 way passive crossover for MC 361 comp.
Real 24 KT gold plated.
Selectable input for single/dual/triple ampli! ers
Double sided PCB with 2 OZ copper thickness to maximize signal transfers.
Using selected silver solder to maximize contacts.
Selected component to maximize each frequency characteristic to achieve the best tonal accuracy.

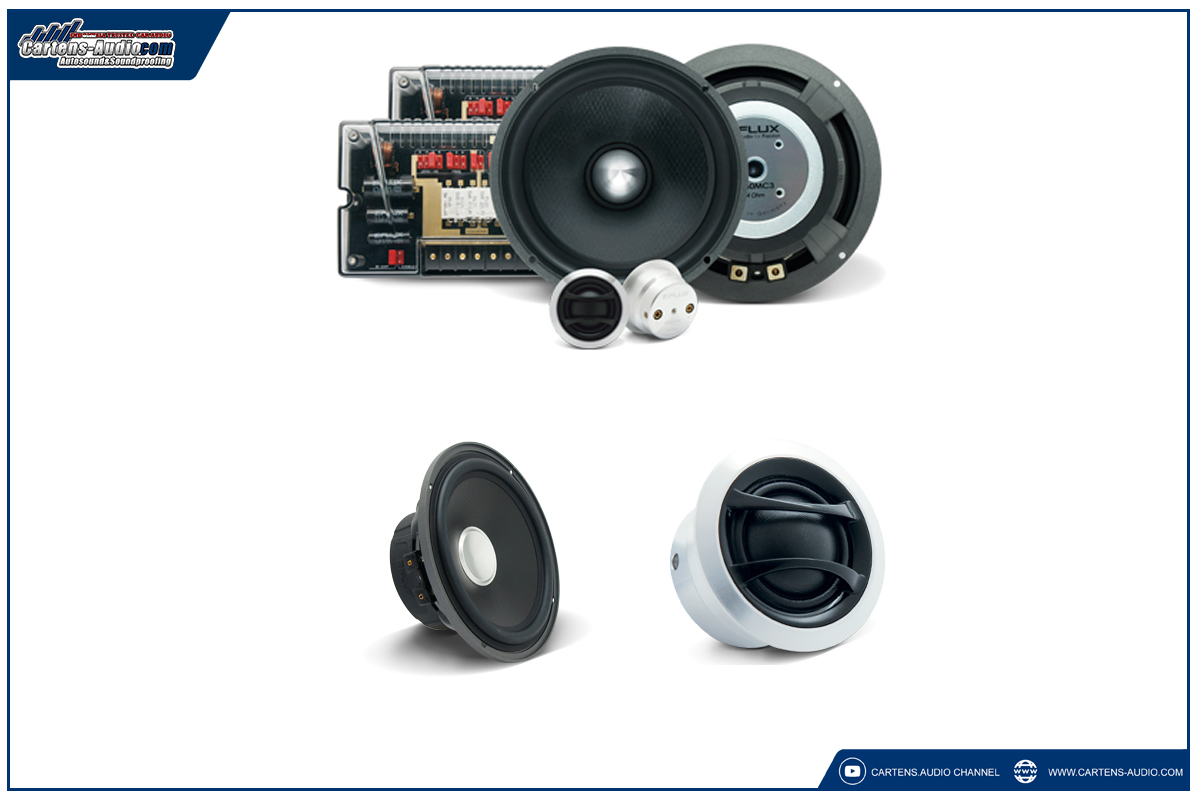

Midwoofer (T160MC3)
Triple sandwich (paper+glass+fiber+silk) cone
37mm v/c with 90mm magnet diameter
Auminium die cast basket, vented basket
Aluminum reverse dust cap

Tweeter (HT25MC)
25mm v/c with Heavy Copper Cup Soft Dome Tweeter with hand made coated.
Vented Magnet with additional rear chamber .
Duralium Housing, screw connector.

Passive Crossover (XMC-261)
2 way passive crossover for MC 261 comp.
Real 24 KT gold plated.
Selectable input for single/dual/triple ampli! ers
Double sided PCB with 2 OZ copper thickness to maximize signal transfers.
Using selected silver solder to maximize contacts.
Selected component to maximize each frequency characteristic to achieve the best tonal accuracy.

Midwoofer (T-160SC3):
6.5" Midwooferspecial coated paper cone
25mm v/c, vented steel basket
Aluminium reverse dust cap with 84 mm magnet diameter

Midrange (M-80S):
3" Midrange with special coated paper cone and
Steel Basket.
25mm v/c Vented Basket with Magnet System.

Tweeter (HT-25SC):
25mm v/c Soft Dome Tweeter with fully hand made coated

Passive Crossover (XS-261):
2 way Passive Crossover for SC 261
With adjustable tweeter level.
Single sided PCB with 2 OZ copper thickness to maximize signal transfers.
Using selected silver solder to maximize contacts.
Selected component to maximize each frequency characteristic to achieve the best tonal accuracy.

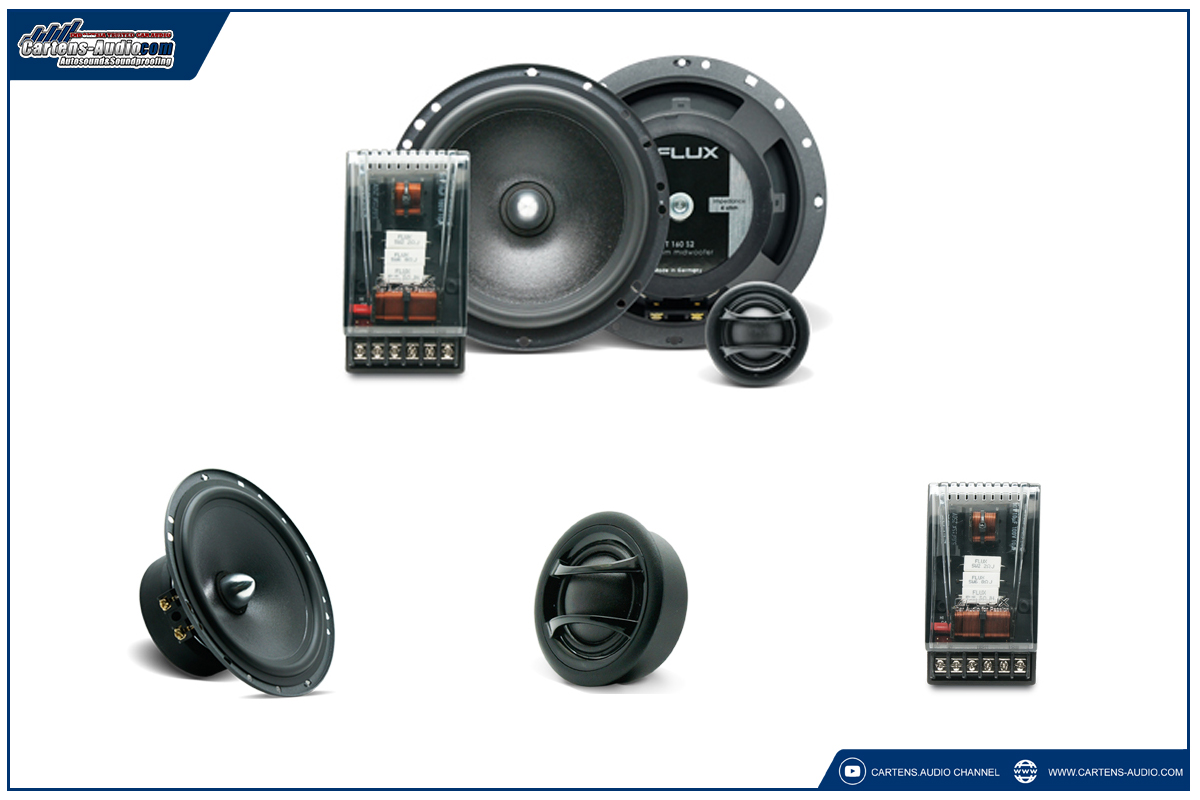

Midwoofer (T-160SC):
6.5" Midwoofer with special coated paper cone and
Steel Basket.
25mm v/c Vented Basket with Magnet System.
Using Aluminium Phase Plug.

Tweeter (HT-25SC):
25mm v/c Soft Dome Tweeter with fully hand made coated

Passive Crossover (XS-261):
2 way Passive Crossover for SC 261
With adjustable tweeter level.
Single sided PCB with 2 OZ copper thickness to maximize signal transfers.
Using selected silver solder to maximize contacts.
Selected component to maximize each frequency characteristic to achieve the best tonal accuracy.

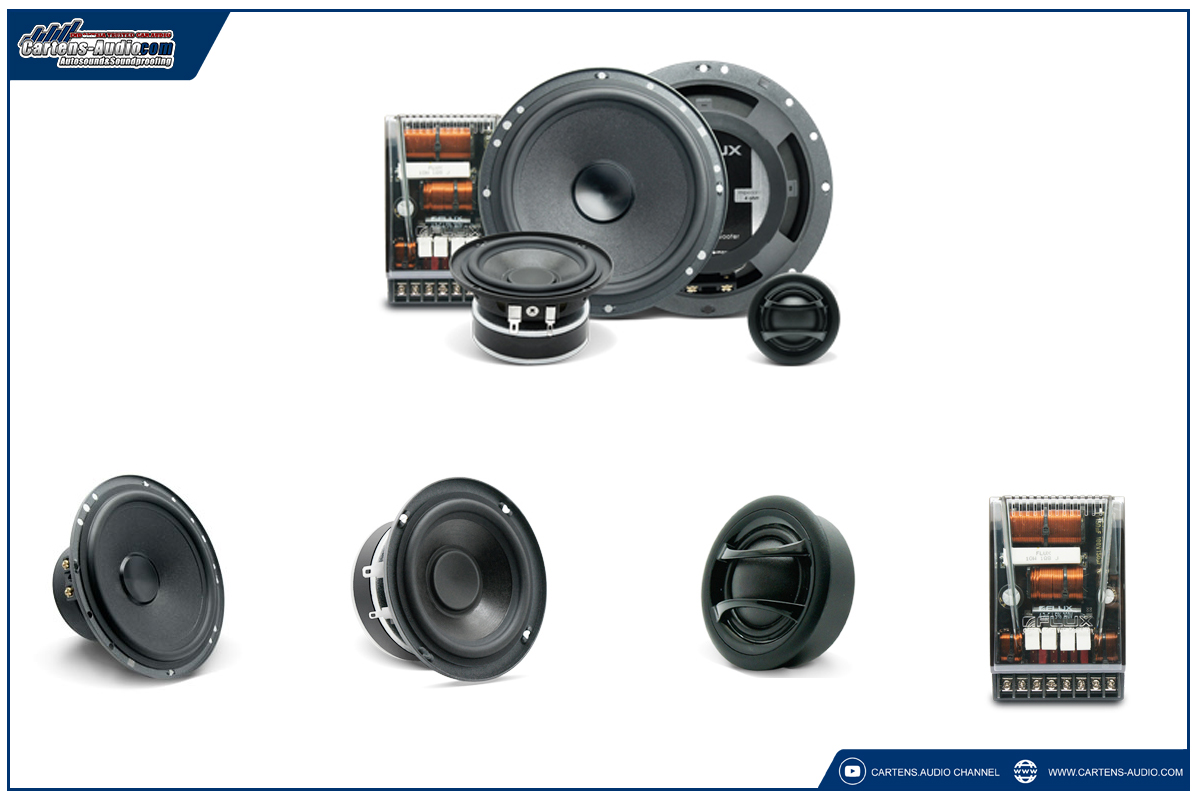

Midwoofer (T-160M3)
6.5" Midwoofer triple sandwich (paper+glass fiber+silk) cone.
25mm v/c with 84mm magnet diameter
Aluminium die cast basket,
vented basket and Aluminum reverse dust cap

Midrange (M-80M)
3” midrange triple sandwich (paper+glass+fiber+silk) cone.
25mm v/c with vented basket, neodymium magnet.
Aluminium die cast basket, screw connector.
Aluminum reverse dust cap.

Tweeter (HT-25M)
25mm v/c Soft Dome Tweeter with hand made coated.
Vented Magnet with additional Rear Chamber.
Duralium housing.
screw connector.

Passive Crossover (XM-261)
2 way Passive Crossover for MC 261.
With adjustable tweeter level.
Single sided PCB with 2 OZ copper thickness to maximize signal transfers.
Using selected silver solder to maximize contacts.
Selected component to maximize each frequency characteristic to achieve the best tonal accuracy.
